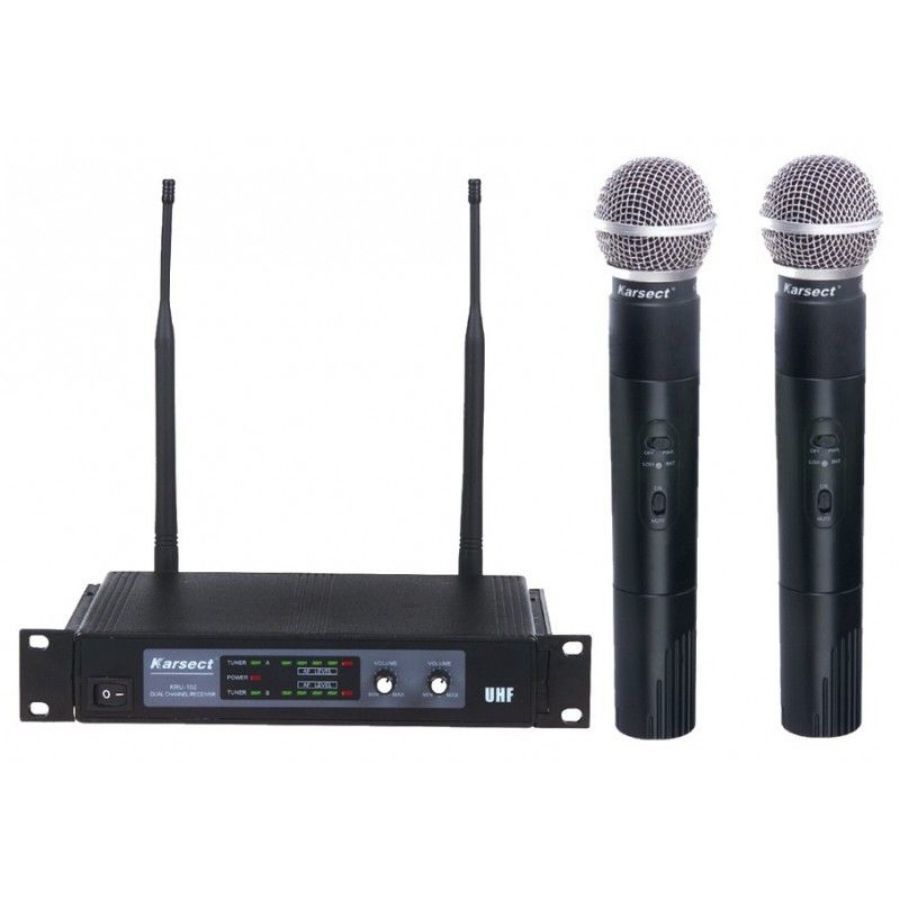

Радиосистема Karsect KRU102/KST-3U

База KRU-102
RF Frequency Range------------------ 460-970MHz
Frequency Stabilization------------ 10PPM
Receiving Sensitivity------------- -107dBm(S/N:-12dB 15KHz)
Image and Spurious Rejection----------- >75dB
Signal/Noise Ratio---------------------- >90dB
Border Upon Channel Rejection----------- >90dB
T.H.D.---------------------------------- <0.5%
Audio Output Level------------------------ 0-300mV
Audio Frequency Response----------------- -50Hz-15KHz(+/-3dB)
Power Requirements----------------- 12-18V DC nominal,300mA
Dynamic Range--------------------------- >100dB
Dimensions------------------------- 26.5x17x4.3cm
Микрофон KST-3U
RF Frequency Range------------------ 460-970MHz
Frequency Stabilization------------ 10PPM
RF Output Power-------------------- 10dBm
RF Spurious Emission--------------- >55dBc
Max Deviation---------------------- >45KHz
Battery Voltage-------------------- 9v DC
Max Drain at 9v DC----------------- <38ma
KST-3U Dimensions------------------ 24.4x5x5cm
